Posted on December 2, 2015 by Dr Xiaoxi He &

Greater presence of thin flexible battery companies at IDTechEx Show!

Nth Degree

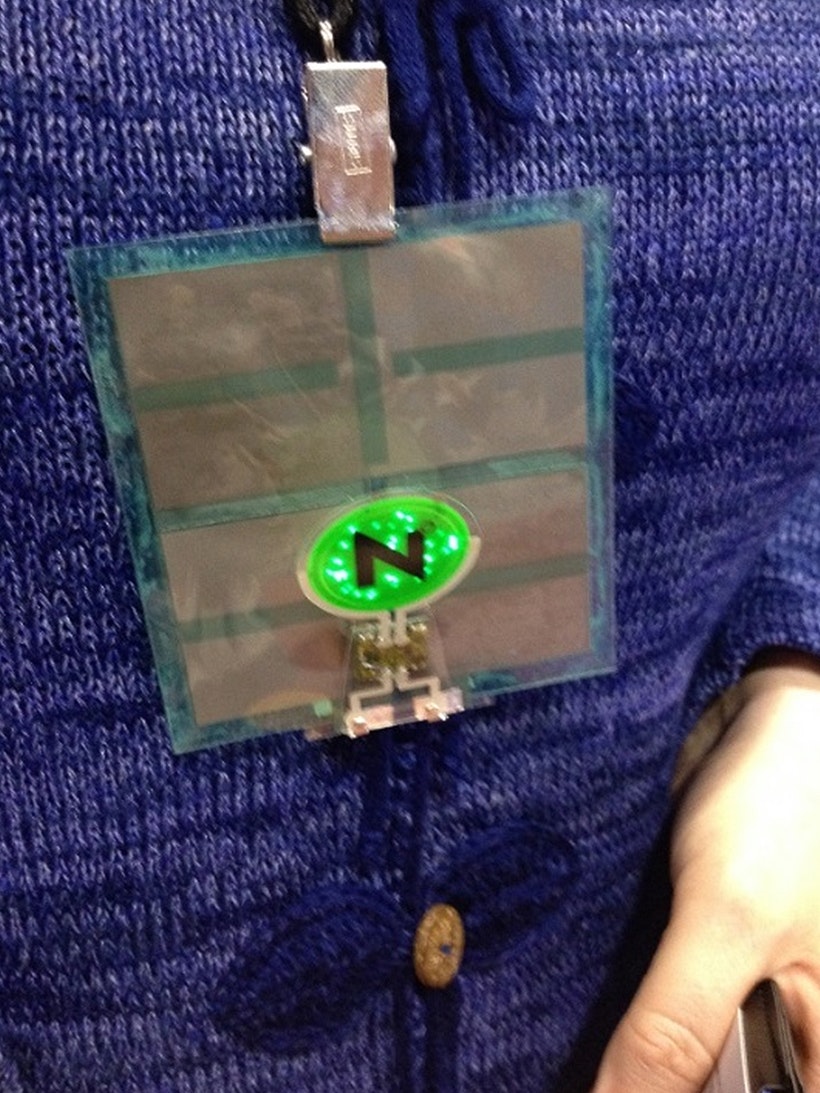

Nth Degree showed its primary battery together with flashing LED logo powered by the batteries. The batteries are adjustable regarding shape, thickness capacity and power based on different applications. The image shows primary batteries at load of 0.1-0.3 mA/cm2 and thickness range 0.5-0.8 mm. The batteries have capacity of 1.5-3 mAh/cm2 with an initial voltage of 1.5V. As no toxic components are used in the batteries, they are disposable after use.


Source. IDTechEx photographs

Flexel

Flexel showed its strong interest in disposable wearables, especially a skin patch/sticker. A number of parameters can be tailored including sizes, shapes, packaging, power density, chemistry and flexibility. The most mature technology is based on printed primary zinc/manganese dioxide batteries, although the company provides more portfolio.




Source. IDTechEx photographs

Imprint Energy

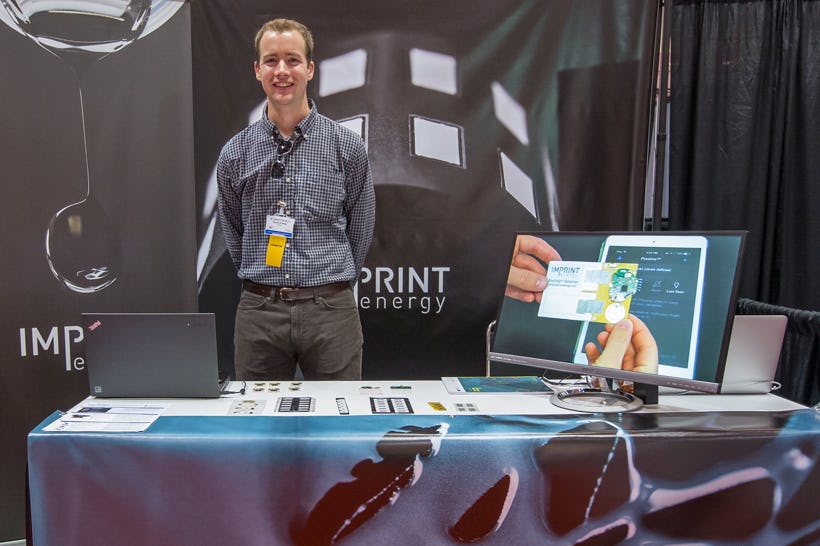

Imprint Energy exhibited in IDTechEx Show! as usual, with its amazing printed rechargeable batteries. Potential applications include wearables, IoT, smart cards, etc.


Source. IDTechEx photographs

Front Edge Technology

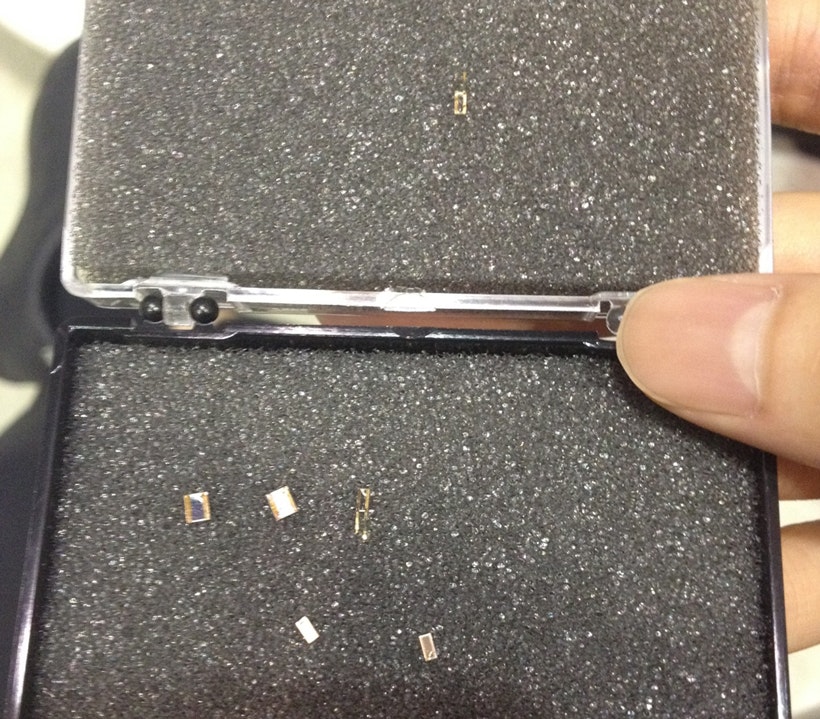

FET uses the technology licensed by Oak Ridge National Laboratory. Its products are ultra-thin solid-state lithium phosphorous oxynitride (LiPON) electrolyte-based and can be made very tiny. The image below gives an idea of how small the battery can be made, compared to a thumb.



Source. IDTechEx photographs

ProLogium

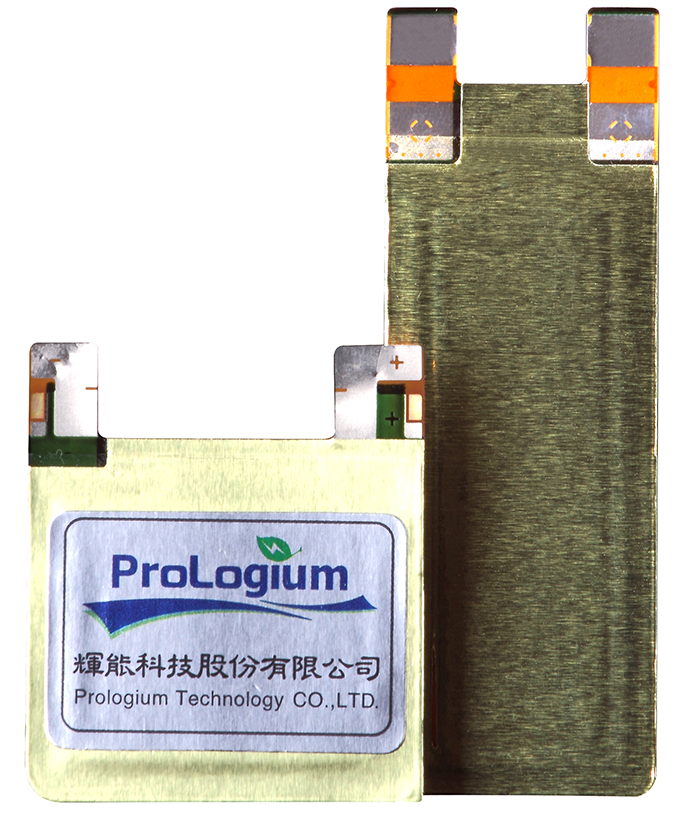

ProLgium spoke in the "Thin and Flexible Energy Storage" session of the conference, which attracted the attention from many relevant players. The batteries shown are based on flexible printed circuit boards and solid-state lithium ceramic electrolyte. Roll-to-roll production facility is ready and by using R2R an area as large as 1 m2 can be made. A number of different applications have been shown as well, including functional lighting, heat insole (which is already available in the Japanese market), smart watch, smart belt (will be available at the end of 2015), smart phone cover providing extra energy, earphone, smart necklace/collar, smart ring, stylus, chopsticks, etc.



Source. ProLogium

BrightVolt

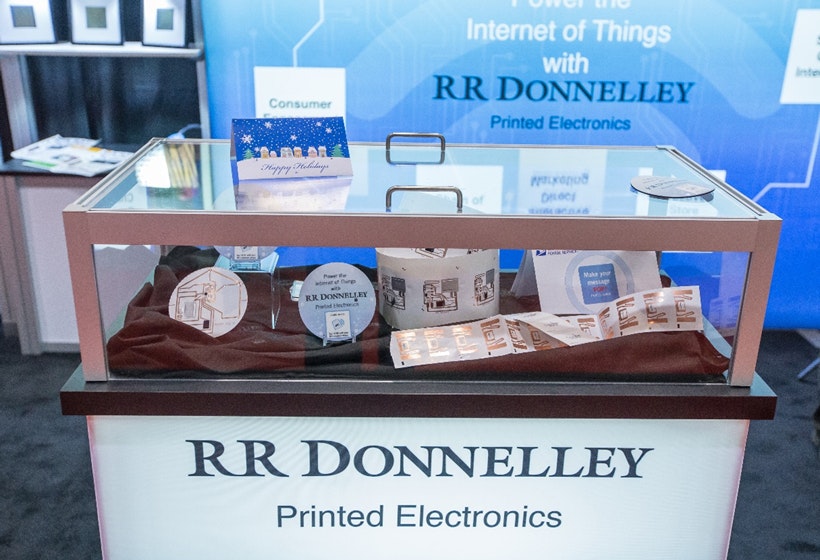

Previously known as Solicore, BrightVolt changed its name in the beginning of September 2015 and the company also spoke at the "Thin and Flexible Energy Storage" session. RR Donnelley, a partner of BrightVolt, showed the printed electronics using batteries provided by BrightVolt as shown in the photo below. BrightVolt also works on secondary thin flexible batteries targeting MEMS applications at the request of many customers.




Source. IDTechEx photographs

Ulvac

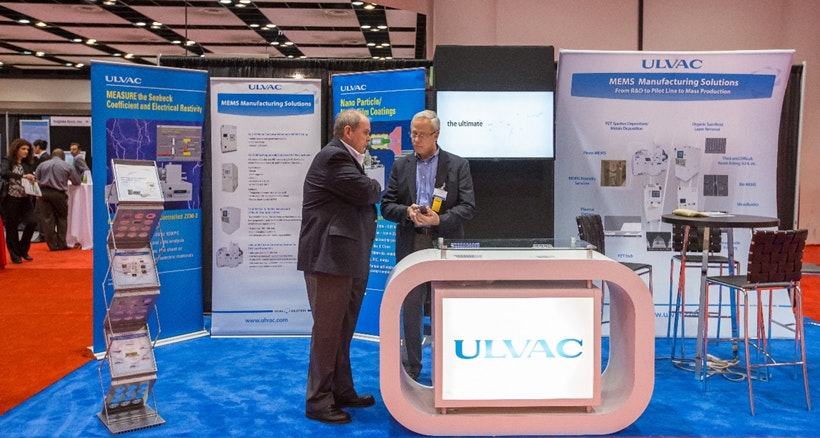

Besides various battery technologies, IDTechEx also had equipment providers such as Ulvac, who has equipment for manufacturing ultra-thin LiPON-based batteries.



Source. IDTechEx photographs

Directed Vapor Technologies

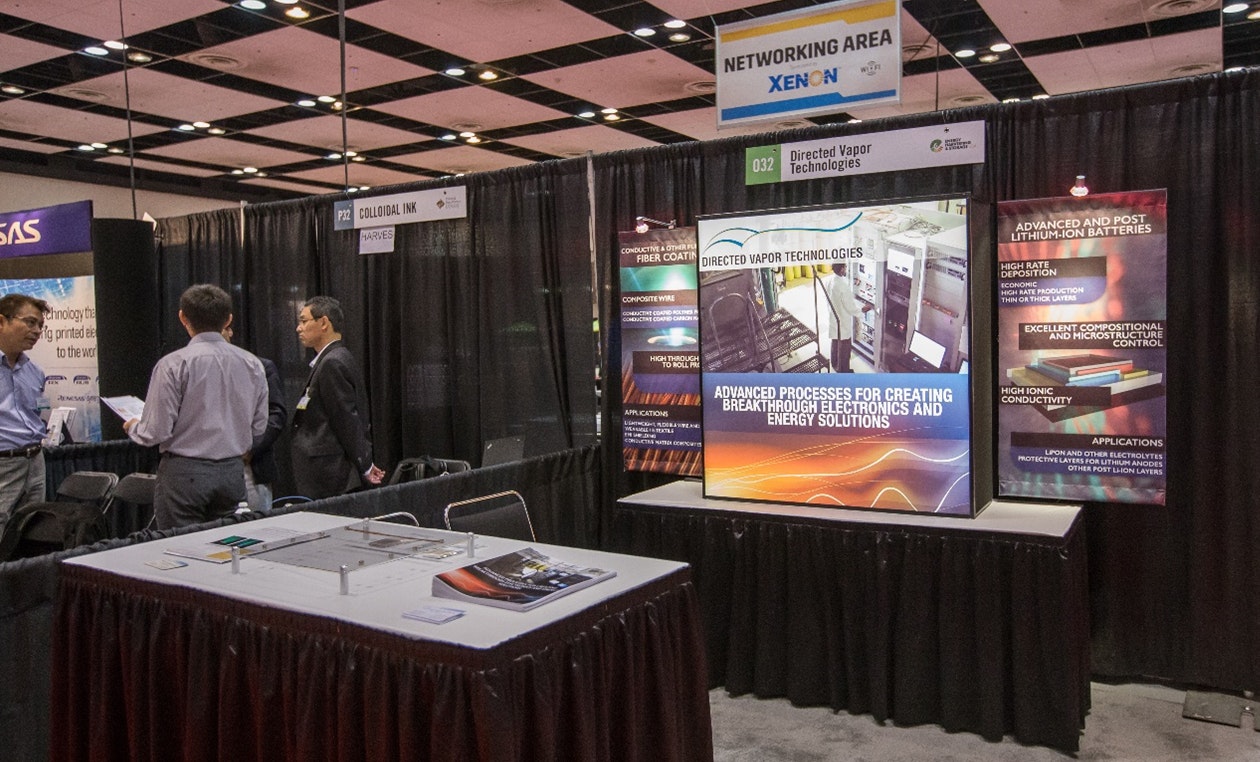

Directed Vapor Technologies uses an advanced version of physical vapor deposition (PVD) --directed vapor deposition (DVD) to create newly possible coating solutions for depositing one or more layers of solid-state batteries more efficiently than conventional deposition technology such as sputtering. DVD is a gas jet assisted E-beam PVD coating process that focuses the vapor flux onto the target substrate, enabling superior compositional control of dense deposits with enhanced ionic conductivity.




Source. IDTechEx photographs

Chinese Graphene Companies

Shandong Yuhuang New Energy Technology Co.,Ltd

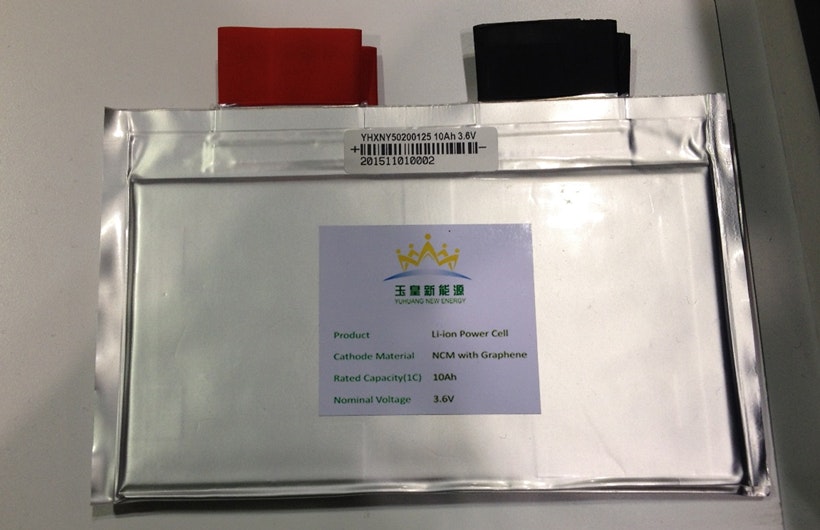

Shandong Yuhuang New Energy Technology Co.,Ltd, a wholly owned subsidiary of Shandong Yuhuang Chemical (Group) Co.,Ltd is a company focusing on research and development of andvanced power lithium-ion battery and related materials. Yuhuang New Energy exhibited in IDTechEx Show! with its new battery products (NCM with graphene as shown in the photo and LFP with graphene). The company is a member of China Innovation Alliance of Graphene Industry. The mother company, Shandong Yuhuang chemical company reached sales revenue of RMB 28.6 billion (about US$ 4.5 billion) and more than 5,000 employees in 2014.


Source. IDTechEx photographs

The Sixth Element (Changzhou) Materials Technology Co., Ltd.

Based in Jiangsu provincial science and technology incubator of China, the Sixth Element (Changzhou) Materials Technology Co., Ltd. focuses on R&D, mass production and sales of graphene and related materials. In the IDTechEx Show! graphene conference session, the Sixth Element introduced itself as well as its products. The company owns 50 & 300 t/year production lines for graphene oxide and graphene powder, as well as 115 employees. Their products ranges from enhanced graphene, energy storage type graphene, to thermal conduction type graphene and anti-corrosion type graphene. Among them, the graphene-zinc anti-corrosion primer used for offshore wind power tower can reach a competitive price of RMB 3.19/m2 compared with zinc rich epoxy primer, the latter costs RMB 3.63/m2.

Learn more at the next leading event on the topic: Printed Electronics USA 2019 External Link on 20 - 21 Nov 2019 at Santa Clara Convention Center, CA, USA hosted by IDTechEx.

Authored By: Dr Xiaoxi He

Principal Analyst

Posted on: December 2, 2015
