Suitability of printing technology (part 5)

Dip Pen Nanolithography – a more distant dream

DPN, meaning Dip Pen Nanolithography is very much in the laboratory for now, promising much but not near commercialisation.Dip-pen nanolithography (DPN) was first developed by Dr. Seunghun Hong, Assistant Professor of Physics, and his co-workers from Florida State University in 1999.

DPN is a direct deposition technique that utilises a very sharp needle (an atomic force microscope tip) as a pen, organic materials as ink and solid substrates as paper. In comparison to a conventional ink jet printer that has the ability to achieve a minimum feature size of approximately 10 microns (the diameter of a human hair), the current resolution of DPN (approximately 10 nanometers, a thousand times thinner than a human hair) means a revolution of direct printing technology. The principle is shown in the figure.

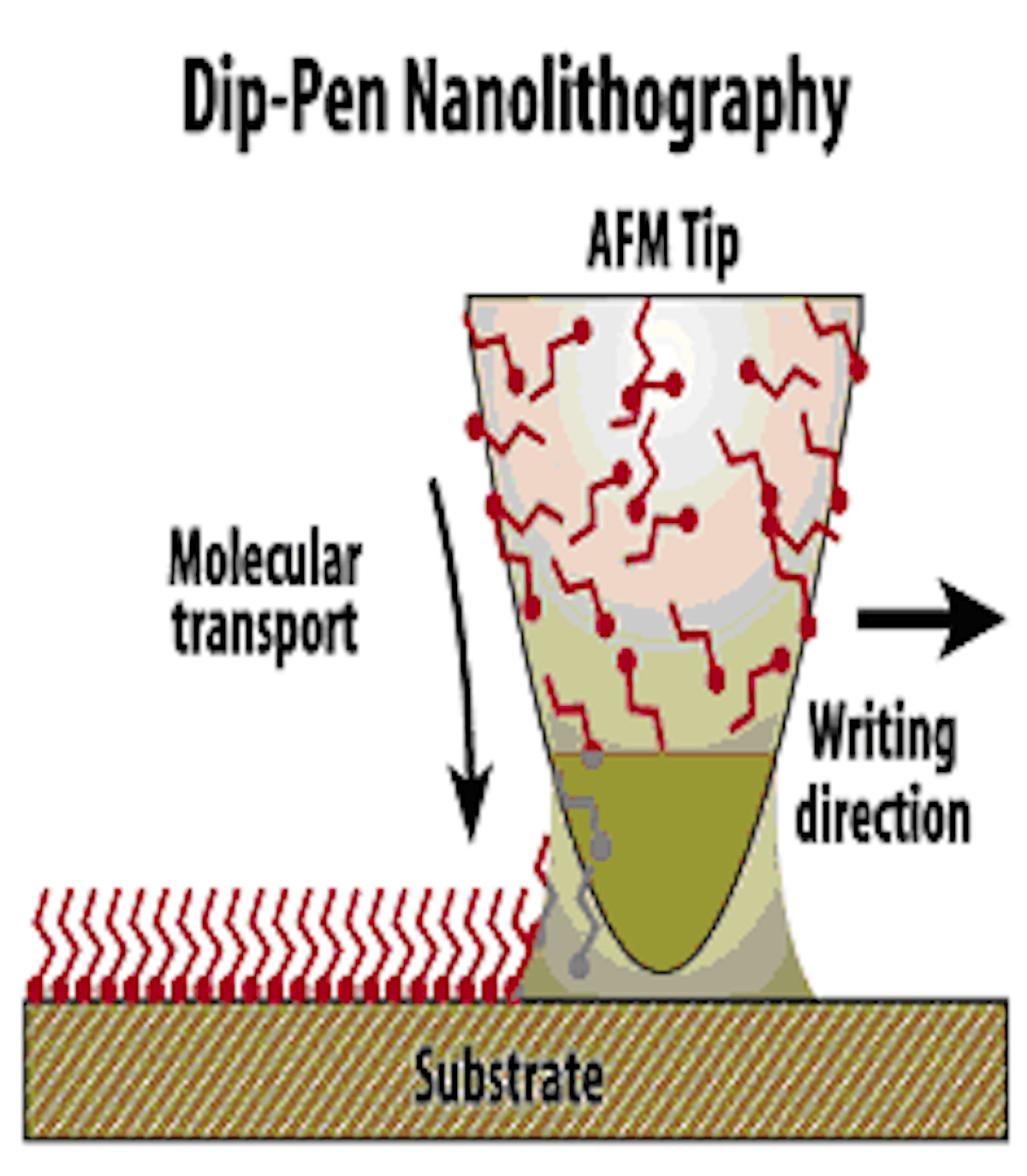

The principle of Dip Pen Nanolithography
