Posted on May 11, 2007 by Dr Peter Harrop &

Indium Tin Oxide Prices Rocket -Alternative Needed

Keeling and Walker is the leading supplier in tin oxide and recently its Dr Stephen Lipiec described the looming crisis with precious indium in the form of indium oxide transparent electrodes, being used on a rapidly increasing output of OLEDs, electroluminescent displays and other products in the world. Indium Tin Oxide (ITO) has very high conductivity and it is transparent, hence it is used for the viewing side of displays. He summarised the situation as follows:

Advantages of ITO
  • Consistency and reproducibility
  • Ability to produce large displays
  • Mature technology
  • Optically Transparent
  • Electrically conductive
  • Can be chemically etched

Disadvantages of ITO
  • Expensive and time-consuming multi-stage process
  • Short supply: Indium is a by product of other mining operations, e.g. zinc and lead
  • Wasteful of expensive ITO - 15 to 30% efficient
  • Indium price around US$800 per kg
  • Inflexibility - large scale production
  • Environmentally unfriendly acid etch process


The price is already rocketing and IDTechEx understands that, in one blip last year, it hit $1000/kg. Keeling and Walker reported:

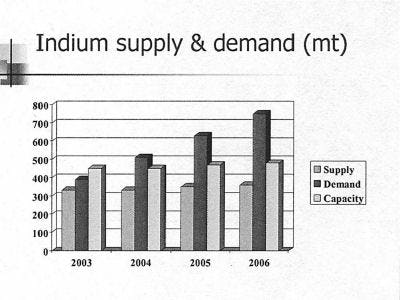

Source Keeling and Walker

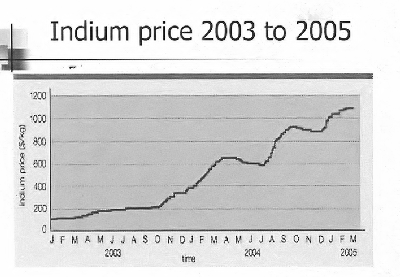

Source Keeling and Walker

Dr Lipiec describes the tin oxide alternative, given that other alternatives such as PEDOT:PSS polythiophene printing seem to be finding only limited scope in the market because of its limitations. His Stanostat CPM10C tin oxide film has 100 ohms per square on liquid crystal display glass and better than 90% optimal transmittance. The problem is a curing temperature well in excess of that needed where low cost polymer film substrates are used - the main potential market.

Keeling and Walker are participating in a two year TC-MAP project in 2007/8 working with Patterning Technologies on ink jet printing of tin-antimony oxide. This is still 90% tin, so cost is low. Thickness will be 10-60nm. The project is focussed on plastic substrates and it is environmentally friendly, leading to an economical and flexible process.


Companies such as Hewlett Packard and others are also working on alternatives to ITO.

For more see www.tinoxide.com External Link and www.pattech.com External Link. Read Introduction to Printed Electronics and attend Printed Electronics Asia Tokyo 10-11 Sept and Printed Electronics USA San Francisco November 13-14.
Learn more at the next leading event on the topic: Printed Electronics Europe 2020 External Link on 13 - 14 May 2020 at Estrel Convention Center, Berlin, Germany hosted by IDTechEx.

Authored By: Dr Peter Harrop
